The affordable, precise and reliable milling machine
The DF50 is the entry-level solution for producing temporary and definitive prosthetic restorations simply and quickly. Its ease of operation and rugged construction ensure fast, precise production that stays consistent over time.
Fits into any lab environment, even where space is limited.
Ease of operation and rugged construction for fast, precise and consistent production.
Ideal for temporary and definitive prosthetic restorations, simply and quickly.
Technology is in Dental Four's DNA: we look to innovation as a key factor in helping labs grow, increasing productivity and cutting costs.
Latest-generation components ensuring maximum precision and long-term durability.
An intuitive interface for immediate use: it shortens the learning curve and increases productivity.
A proprietary AI algorithm performs continuous predictive maintenance, minimizing machine downtime.
Designed to energy-saving criteria (ISO 14955): lower consumption and reduced operating costs.

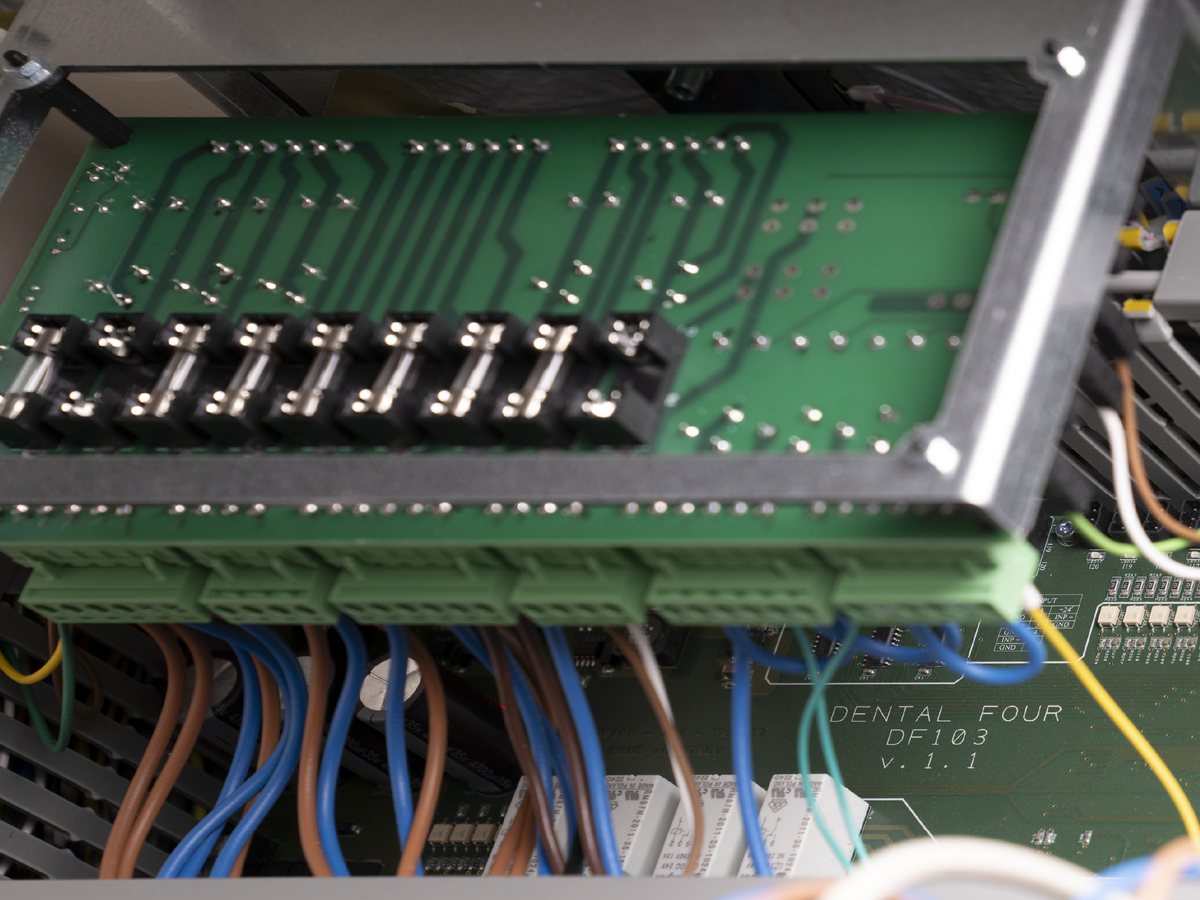

The compact, high-rigidity mechanics, advanced electronics management and high-quality components guarantee levels of precision and speed at the top of the category.

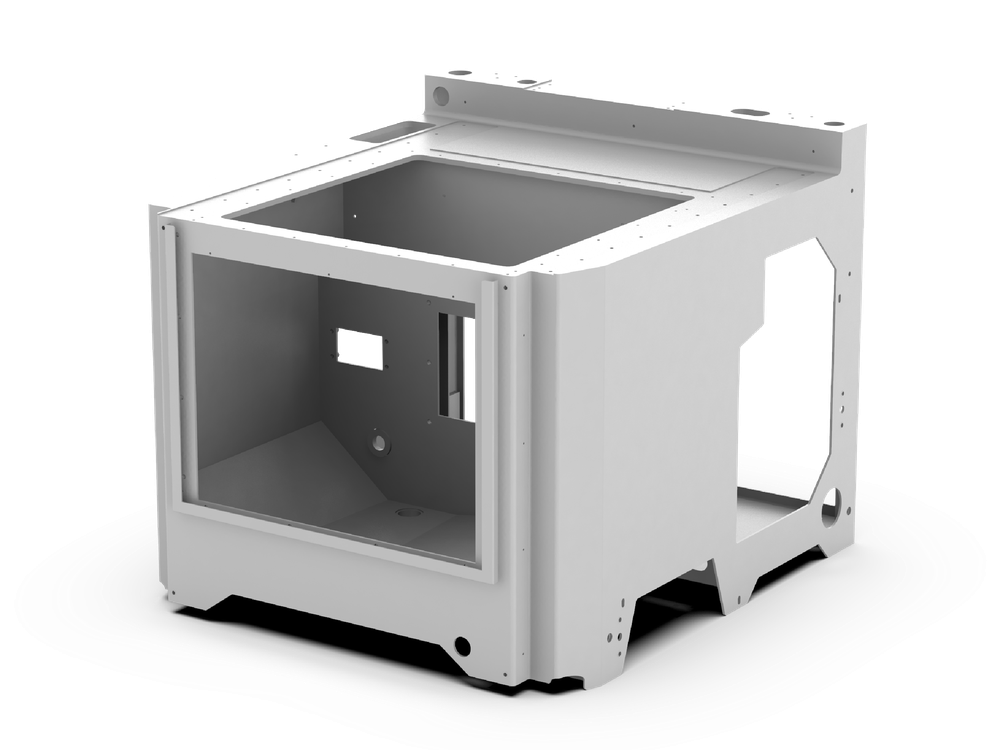

The stainless-steel work chamber is integrated into the frame: maximum robustness and rigidity, easy cleaning and dust/liquid tightness.
The extraction nozzle is fixed to the spindle to work close to the tool; adjustable air nozzles ensure consistently optimal cooling and spraying.
The wide axis tilt angles allow restorations with significant divergences on titanium and chrome-cobalt and, with the C-Clamp, buccal-region machining.
Every machine includes an initial equipment kit with milling cutters for advanced machining, such as angled holes and threading.
The DF50 precisely machines a wide range of materials, for high-quality prosthetics.
To ensure the best chip extraction, the extraction nozzle is fixed to the spindle, so it works in the area closest to the tool. The air-blast nozzles for cooling and liquid spraying are also fixed to the spindle, always guaranteeing correct lubrication.
The DF50 is an AIR FREE version and does not include the wet lubrication system.
The compact, high-rigidity mechanics, combined with advanced electronics management and high-quality components, deliver levels of precision and speed never before seen in its class.

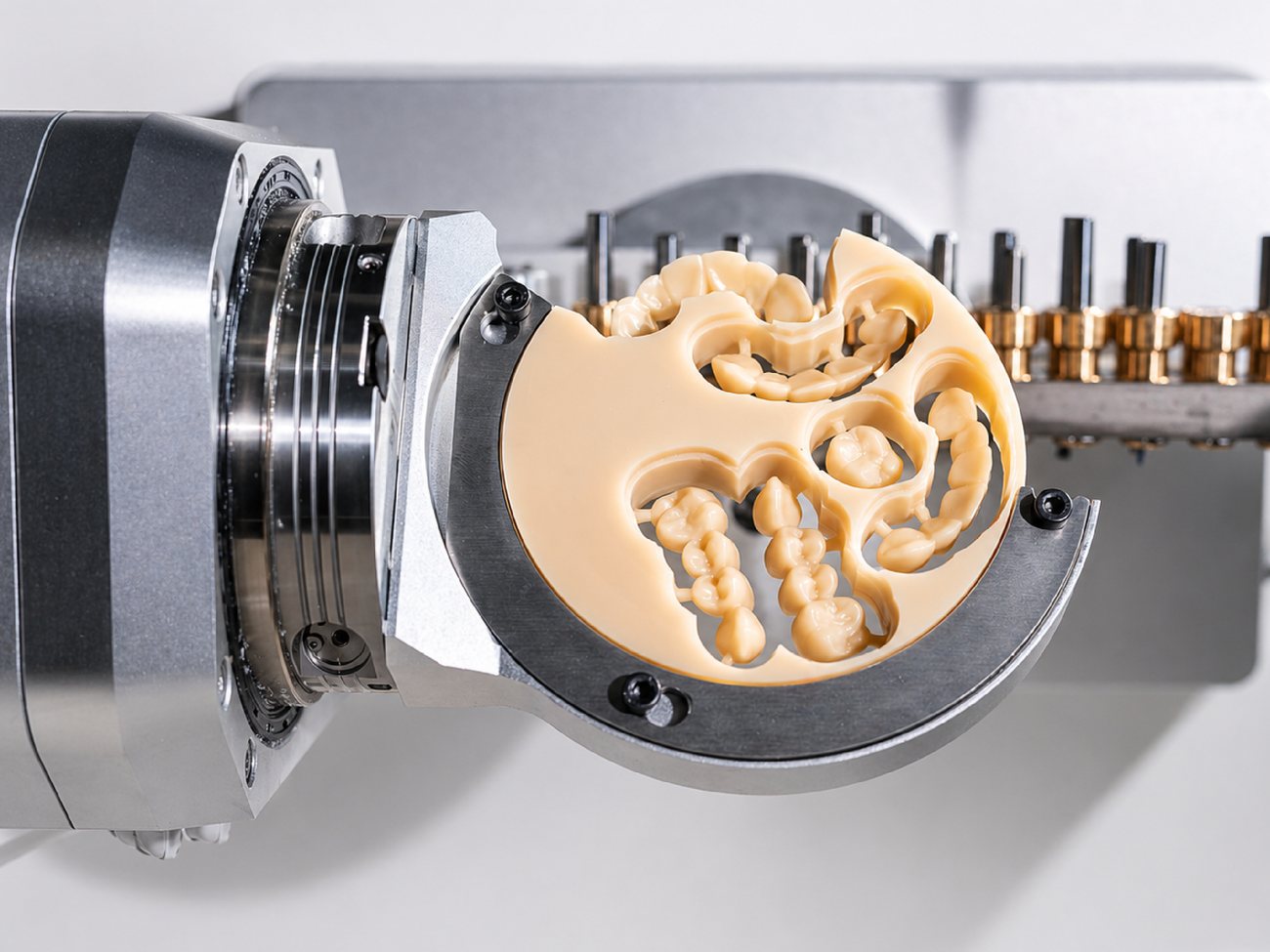

Thanks to the C-Clamp system, the DF50 mills with the disc positioned at 90°: superior esthetic results on every restoration.
The DF PANEL interface makes operation immediate and hassle-free, shortening the learning curve and increasing productivity even for less experienced operators.
All our products are compatible with the leading CAM software on the market. Thanks to a «certified» strategy package, we guarantee a minimal learning curve and immediate productivity even for less experienced operators.

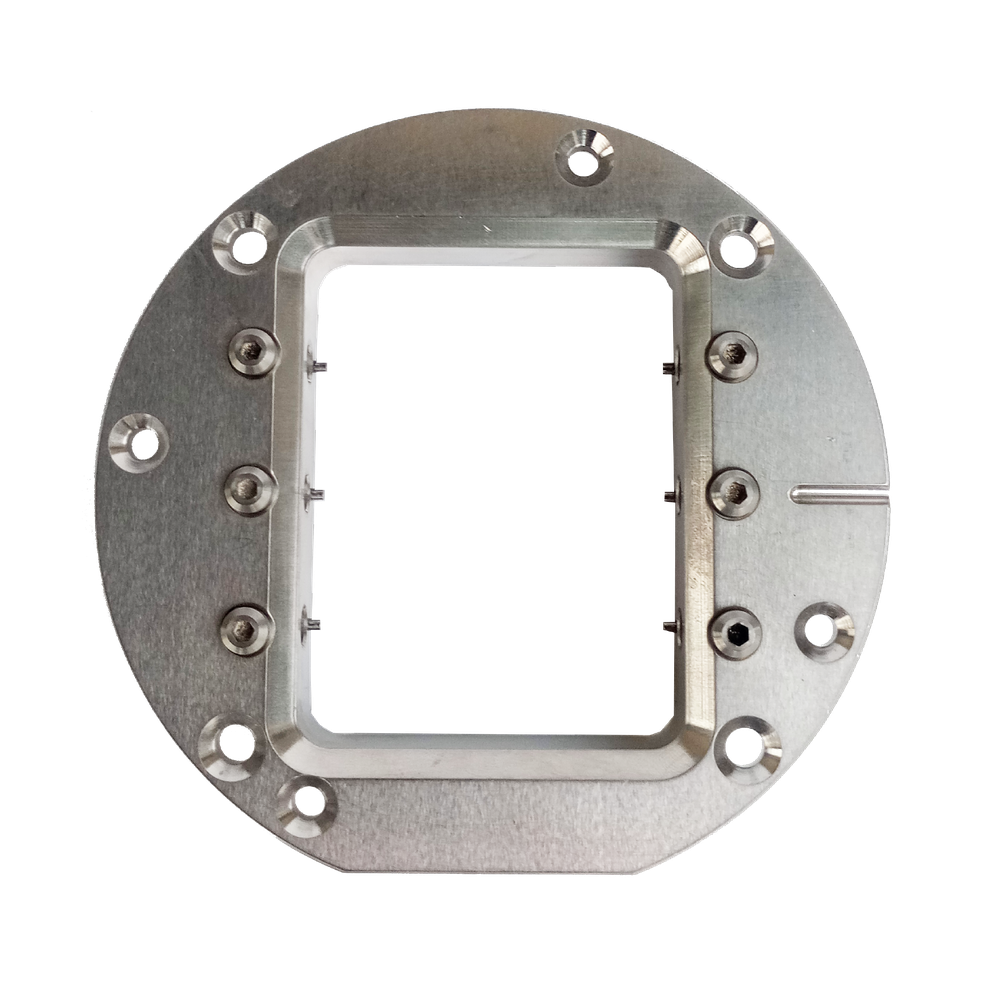

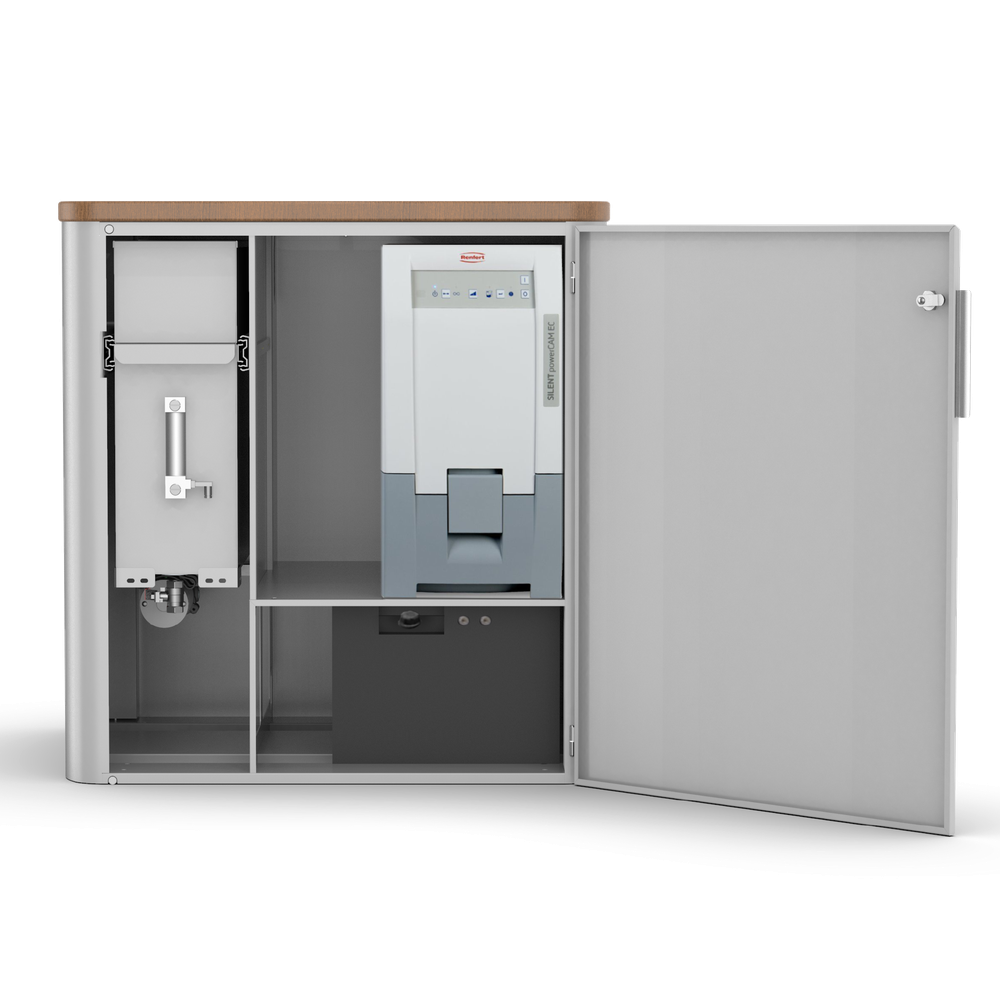

Customize the machine with accessories and supports designed for your workflow.
| Milling system | 5 continuous axes |
| Spindle | 750 W · 60.000 rpm |
| Tool holder | 3 mm |
| Tool change | Automatic, 12 positions |
| Motors | Stepper with encoder |
| Axis rotation | A axis harmonic drive · B axis epicyclic class p0 |
| Rotation angle | A = 360° · B = ± 40° |
| Lubrication | Not applicable (AIR FREE version) |
| Power supply | 230 V AC · 1200 W · air-free |
| Dimensions | 490 × 650 × 740 mm |
| Weight | 90 kg |
All the technical information for the three Dental Four lines, ready to download.
